H Type Broiler Cage System
2024-07-30
We designed H-type broiler cages for broiler breeding, making broiler breeding more factory-like, large-scale and automated. Our products are sold to many large-scale broiler farming companies and play a key role in successful farming. Our H-type broiler cages have better meat ratio and survival rate. In order to meet the needs of different customers, we have developed various types of H-type broiler cages.

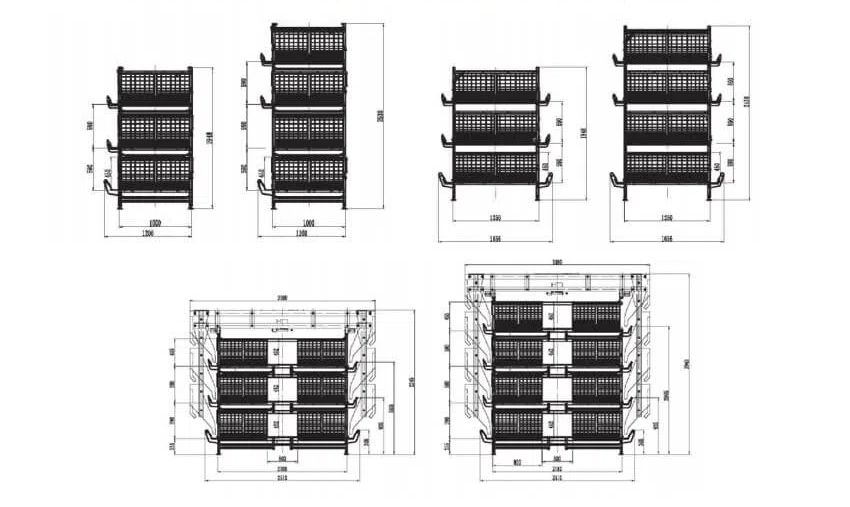

| Tiers | Area/bird(cm²) | Birds/door | Dimension/door(mm) | Tier height(mm) |
|---|---|---|---|---|
| 3 | 500 | 20 | 1250*800*452 | 590 |
| 4 | 500 | 20 | 1250*800*452 | 590 |
| 3 | 543 | 23 | 1250*1000*450 | 590 |
| 4 | 543 | 23 | 1250*1000*450 | 590 |
| 3 | 546 | 32 | 1400*1250*450 | 590 |
| 4 | 546 | 32 | 1400*1250*450 | 590 |
Featured design
In order to facilitate the catching of chickens, the bottom grid of our H-type broiler cage adopts a pull-out design. The bottom net is pulled out, and the broilers in the cage can fall directly on the manure conveyor. The broilers can be transported outside the house by means of conveyor belts.
