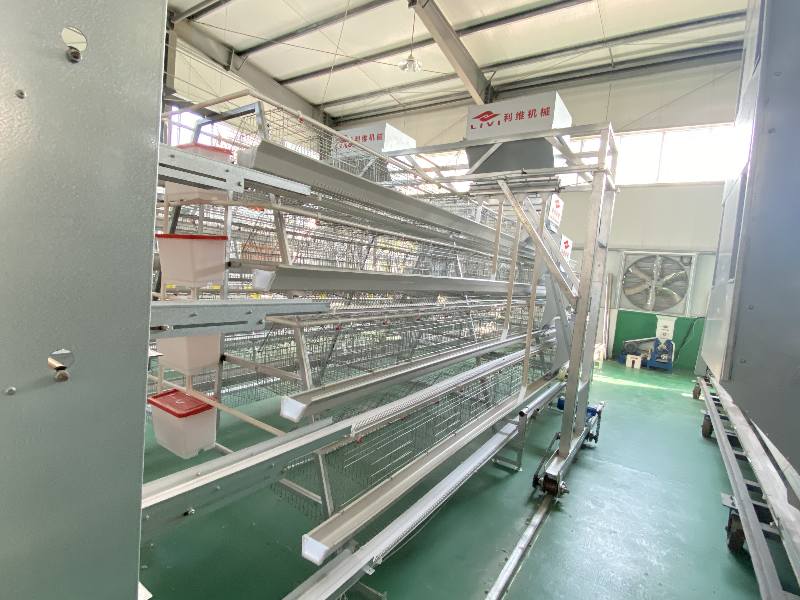

What is A type Layer Chicken Cage?

Layer chicken cage is an equipment used to feed layer chicken which the age is about 16 weeks and even older. Not only the open house, but also close house, layer chicken cage is suitable. Just like its name, a type layer chicken cage looks like capital letter A, generally speaking, a type layer chicken cage is popular all over the world, especially in tropical country like Africa, South East Asia and South Asia where the farmers have large scale land for feeding kinds of poultry.

Equipment list of the layer cage system:

Basic Component:
Chicken layer cage mesh, Chicken layer cage frame, Feeding trough, Water Pipe, Water Pressure Adjuster, Drinking Nipple.

Optional automatic equipment:

• Automatic feeding system: The feeding process all the use of automated control, it can adjust the amount of materials. It prevents the waste of feed.
• Automatic drinking system: High-quality water drinking cups, pressure valves and 360-degree drinking nipples can effectively prevent the water leakage and drinking system adopt the closed piping system, which can minimize the water pollution.
• Automatic egg collecting system: Perfect roll out angle of the bottom mesh minimize the breakage. It has a powerful ability to collect eggs, collecting up to 20000 eggs per hour, collecting and conveying eggs between different chicken sheds.
• Automatic manure removing system: The conveyor belt type is suitable for both A-type cages and H-type cages, which can reduce the labor intensity and labor cost, keep the chicken shed dry and clean.
• Central integrated control system: This system is a modular system which manages all aspects of a poultry house, such as climate, temperature, feeding, drinking, weighing and ventilation system. The management computer is the core of the poultry farm for you to monitor the whole poultry farm easily.

Brief Details
Material	International Q235 steel.
Anti-corrosion treatment process	Electrostatic spraying, Aluminum-zinc alloy, Hot-dip galvanized
Life Time	15 – 20 Years
Certificate	ISO9001, ISO14001, OHSAS18001, CE, SONCAP, PVOC
Production Lead Time	Depending on the order quantity. Normally about 10 days for 20ft container, 15 days for a 40ft container.
Supply Ability	10000 Set/Month
Packing Method	Normal export packing. 20ft / 40ft container.
Payment Method	T/T, L/C at sight
Trading Method	EXW, FOB, CFR, CIF

A type layer chicken battery cage specification
type	Model	Birds Qty / Door	Birds Qty / Set	Specification
A-Type	3-Tier 4-Door	4pcs	96pcs	1950mm*350mm*380mm
	3-Tier 5-Door	3pcs	90pcs	1950mm*350mm*380mm
	4-Tier 4-Door	4pcs	128pcs	1950mm*350mm*380mm
	4-Tier 5-Door	3pcs	120pcs	1950mm*350mm*380mm
	4-Tier 5-Door	4pcs	160pcs	1950mm*450mm*410mm

A Type Layer Chicken Cage Features

• A type layer chicken cage generally has 3-4 tiers, each set can be feed 90/120/160/200 birds.
• For the whole body of the cage, we ordinarily adopt cold galvanizing, which the lifespan can reach 12 years and the surface is so smooth. Sometimes, we offer hot galvanizing, which has longer lifespan about 20 years, but the shortcoming is not so smooth as cold galvanizing. Generally speaking, the price of hot galvanizing is higher than the cold galvanizing, so we sincerely advice some African countries to use cold galvanizing. Hot galvanizing is suitable for moist climate countries like Southeast Asia.
• The main part of A type layer chicken cage contains cage frame, cage meshes, drying system like pipe, nipple drinkers, water drip cups and water pressure regulators, terminals, splits etc., feed trough.
